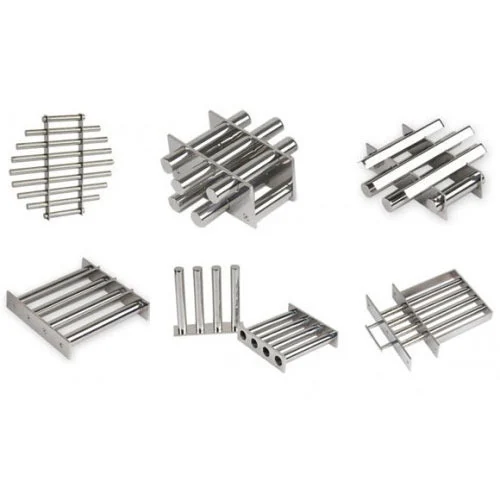

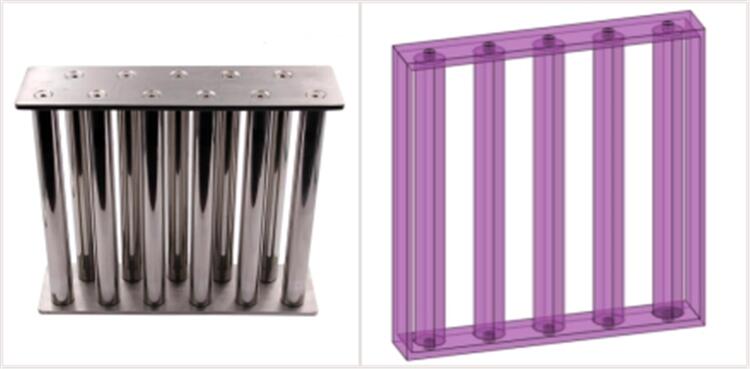

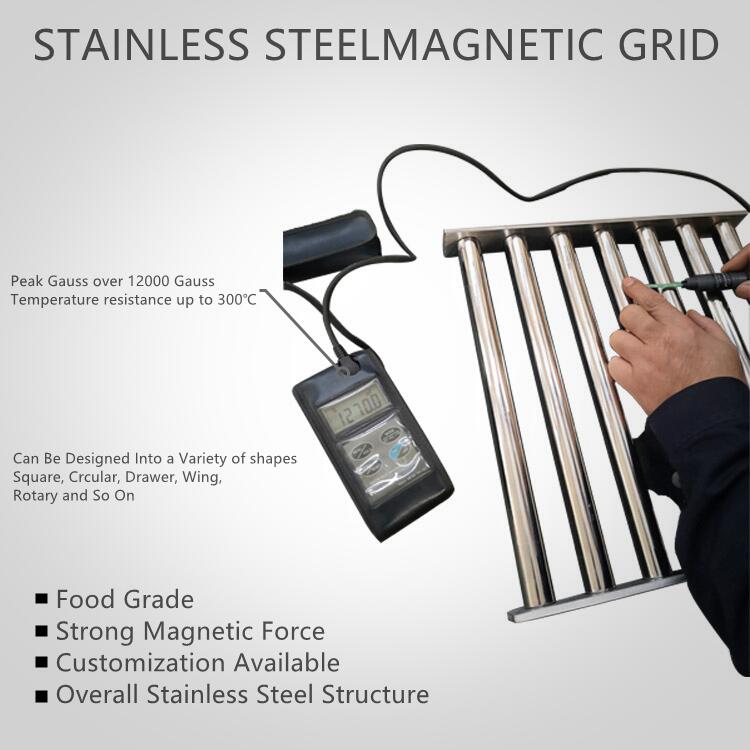

Magnetic grid is composed of a series of parallel magnetic bars, magnetic bars spaced from each other and firmly fixed to the grid bracket or frame. Magnetic grid can be designed into a variety of shapes, such as square, circular, drawer, wing, rotary and so on, to match the different shapes of hoppers, chutes, pipes, openings and so on. Magnetic separation grids are flexible and efficient magnetic separation devices designed to remove ferromagnetic impurities, weak magnetic iron contaminants, and others in free-flowing, externally-conveyed materials (such as pellets and powders) and other small paramagnetic particles, which can effectively purify the material, improve material quality, and protect the downstream equipment from the damage of the ferrous, to ensure the efficient operation of processing equipment. Applicable Industries Medicine, food, chemicals, plastics, ceramics, tobacco, glass and other industries. Optional Features 1.Surface Material : SUS304, SUS316L 2.Magnetic Strength : 2000-12000 Gauss with different grade magnets. 3.Working Temperature : ＜80℃，＜100℃，＜120℃，＜150℃，＜180℃，＜350℃. 4.Size and Shape : Customized size and shape, such as multi-layers, round, square, irregular, half round and so on. 5.Cleaning Method : Regular type and Easy cleaning type.
Note: 1. Special sizes available upon request.
2. Dimensions and specifications are subject to change without notice.
1. who are we?
We are based in Jiangsu, China, start from 2016,sell to Southeast Asia(50.00%),Africa(30.00%),North America(15.00%),Western Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Magnets,Magnetic Rod,Iron remover,Electromagnet,Magnetic Drum
4. why should you buy from us not from other suppliers?
The company for the source factory has the independent research and development, the production, the sale is a body's management pattern,With a first-class product development team and sales team, product variety, quality.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
